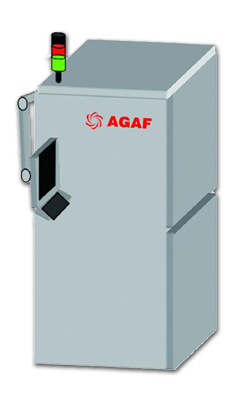

Hanging Master Control System (optional)
Color monitor color display
Platform Work Platform
Interface end face
Communication Communication
Based on: Siemens S7-300/S7-200
TFT10.4" LCD Monitor
PC with Windows XP
USB at the panel of the USB
Ethernet/RS485
Dimensions and weights Size and weight
Dimensions with suspension system machine size with suspension system
Length is long
≤800 mm
Width
≤800 mm
Height high
≤1600 mm
Weight Weight
≤500 kg
Paint Protection
Main frame and suspension system
Host Frame and Suspension System
DuPont metal powder: white RAL 9020
DuPont Metal Powder: German White RAL9020
Sound insulation panel
Sound protection panel
DuPont metal powder: blue RAL7016
DuPont Metal Powder: German Grey RAL7016
Product Features:
Feature 1: Applicable places
The unit is suitable for residential areas and commercial offices to provide comfortable air conditioning.
Feature 2: Unit form
The unit has two forms, vertical and horizontal, which can meet the requirements of different places of use.
Feature 3: Save space
The unit can be installed directly on the roof, wall, floor or balcony to make the exterior of the apartment beautiful without damaging the overall beauty of the building.
Feature 4: Good quality
The refrigeration components and electrical components of the unit are imported or brand-name products, and the unit is of good quality.
Feature 5: Safe and Reliable
The compressor of the unit has safety measures such as high voltage protection, overload protection and overheat protection, and the operation is stable and reliable.
Feature 6: Especially quiet
The unit uses an ultra-quiet compressor and a low-noise axial fan to make it run quieter.
Feature 7: Easy to install
The unit is equipped with a circulating water pump. It only needs to be connected to the system to connect the inlet and outlet pipes.
Feature 8: Control Technology
The unit adopts microcomputer intelligent control, with detailed text operation prompts and running parameter display, three-dimensional animation effect, high automation reliability of the unit, easy operation, scientific management and energy saving.
High and low voltage switch, temperature switch, antifreeze switch, overload protector, water shutoff protector
In and out water pipes
DN25
DN40
Noise (dB)
56
58
67
70

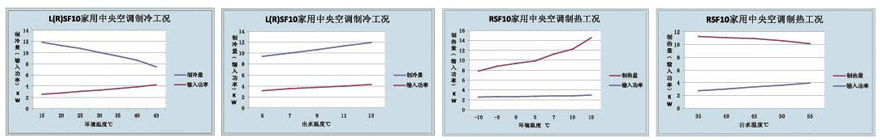

Note: 1. Nominal cooling conditions: ambient temperature 35 ° C, cold water outlet temperature 7 ° C, return water temperature 12 ° C;
2. Heating nominal working conditions: outdoor temperature dry ball 7 ° C, wet ball 6 ° C, hot water outlet temperature 45 ° C, return water temperature 40 ° C;
3. LSF8-LSF40 is a single-cooled unit with no heat;
4. The weight does not include the weight of the circulating water; the running weight is increased by 10%.
